Diesel EGR Cooler Kits

Sales Spotlight: Diesel EGR Cooler Kit

Not All Diesel EGR Coolers Are Designed The Same

Diesel EGR coolers use engine coolant to reduce exhaust gas temperatures before the gas is recirculated through the intake system. Reducing exhaust gas temperatures is critical for reducing NOx emissions. Plus, engines that run with higher EGR temperature don’t adequately cool the combustion, which can reduce the life expectancy of the EGR valve, engine valves, and head gaskets.

But not all diesel EGR coolers are the same. The original equipment EGR cooler’s fin-and-tube-style design is prone to clogging and leaking.  Additionally, many aftermarket EGR coolers feature various tube designs that do not provide the necessary cooling. Providing a superior alternative to both designs, GP Sorensen® is proud to offer a diesel EGR cooler with an upgraded 20 spiral tube design. Take a look at our 800-97001 above, for example.



Download Product Information

Tested to Ensure OE Cooling Efficiency

Most aftermarket suppliers fail to adequately test their EGR coolers for proper performance. We subject our diesel EGR Coolers to 100% factory testing for air and water leaks. To see how our Diesel EGR Cooler performs against both the OE and our aftermarket competitors, see the results of our heat exchange test above. Note that vehicles with exhaust gas temperatures not in the optimal temperature range are at risk of failing NOx emissions inspections.

The Benefits of a 20 Spiral Tube Design

The OE EGR cooler features a tube-and-fin-style design that is prone to clogging from soot and to internal leaks from fractures caused by overheating. To address the design flaw, our diesel EGR cooler 800-97001 features a 20 spiral tube construction that resists soot clogging and prevents leaks to maintain proper system flow and pressure. Plus, our design provides the same cooling efficiency as the OE design.

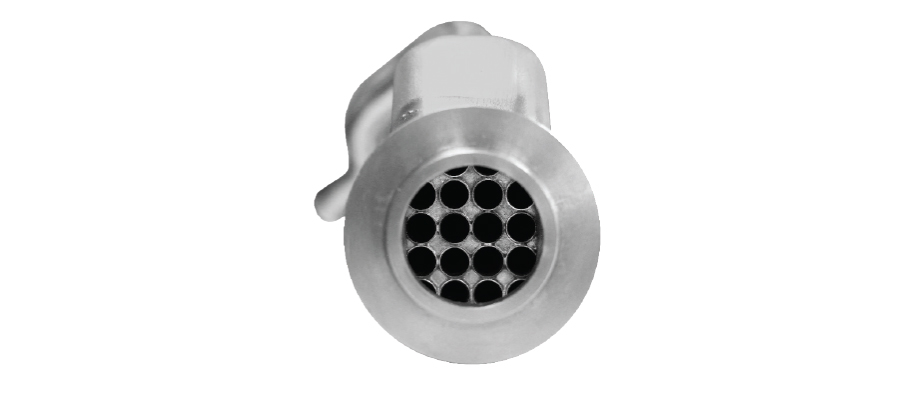

  • 1jpg-1

    GP Sorensen® 800-97001

    Design: 20 spiral tubes
    Effect: Provides OE-matching cooling efficiency while resisting soot clogging and maintaining necessary system flow and pressure

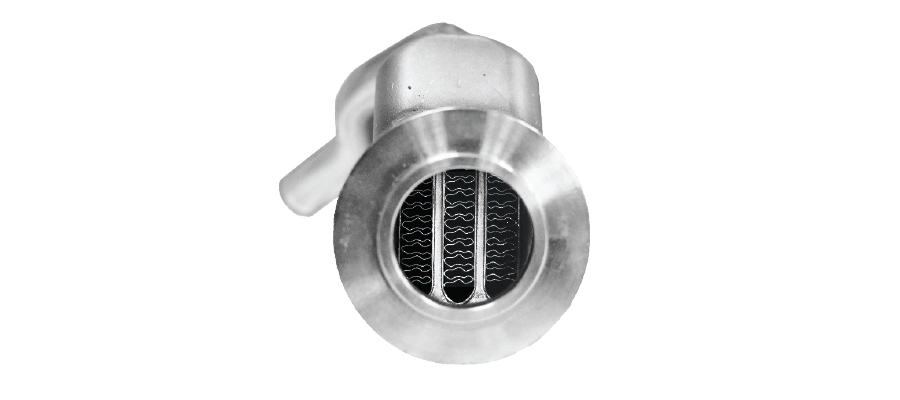

  • 2jpg

    OE

    Design: Fin-and-tube
    Effect: Although this design is efficient, it's prone to soot clogging and internal leaks from fractures caused by overheating

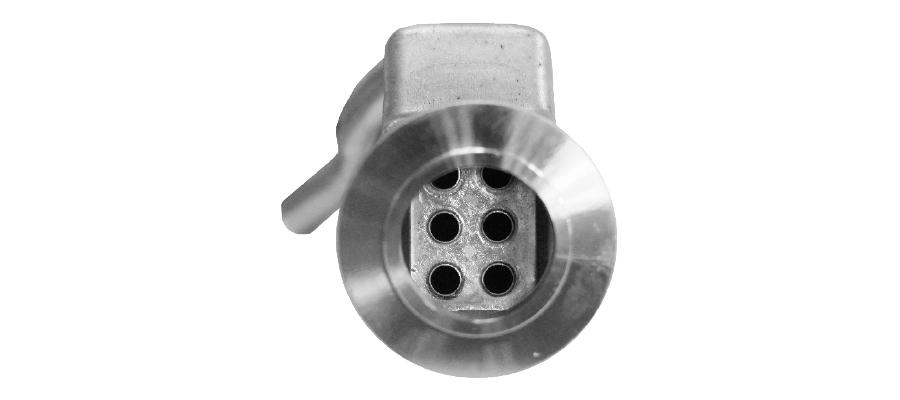

  • 3jpg

    Competitor A

    Design: 6 spiral tubes
    Effect: Exhaust gas temperatures that are hundreds of degrees hotter than OE specs, which can reduce the life expectancy of the EGR valve, engine valves, and head gaskets.

  • 4jpg

    Competitor B

    Design: 6 straight tubes
    Effect: The straight tubes are less efficient than spiral tubes, which creates even hotter exhaust gas temperatures than Competitor A
